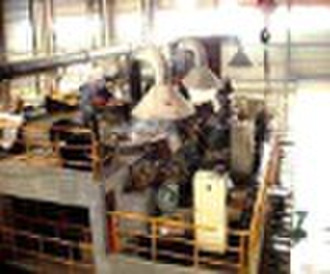

GYT-1.5 5.0 Frequency Induction Melting with scr

ApplicationSuitable for copper & its alloys billets casting production in round and flat shape Product SpecificationBillet Size: Φ120 300mm Length: Max. 6,000mm Weight: Max. 9000kg Strand: Single/two Caster SpecificationLength of Screw Bar: 8,000mm Dia. of Screw Bar: Φ250mm Length of Guide Bar: 8,700mm Size of Guide Bar: Φ200×WT18mm Center Distance between Guide Bars: 1000mm Center Distance between Casting Center line and Screw Bar: 560mmCasting Motor: 11.0KW（Speed regulated AC motor） Casting Speed: 0 300mm/min, adjustable Stroke of Casting Platform 6,000mmCasting MouldThe shell is made by cast iron and hot-fit with copper liner. The surface of the copper liner is chrome plated with thickness of .08～0.10mm.Caster StructureA welded case is on the upper position, to support mould trolley. A screw bar is fixed in the middle and there are two guide bars sitting at both sides respectively, to bear turning torque and maintain casting movement uniform and stable.6. Mould TrolleyIt is a kind of welded structure with four wheels. The mould sits on the top.
